Retaining Walls in Brookhaven, PA
We build and rebuild retaining walls across Delaware County. Water decides how long a wall stands, so the footing, the drainage stone and the weeps get as much attention as the face you see.
- Brookhaven, PABased here, working Delaware County
- Drainage firstStone, fabric and weeps on every wall
- Failing walls rebuiltFixed at the cause, not the face
What makes a retaining wall last in Delaware County?
A retaining wall holds back soil and the water that soaks into it, so the drainage behind the wall matters more than the stone on the face. Soil absorbs rain and gets far heavier, and if that water cannot escape it pushes on the wall harder through every wet season. That pressure causes the lean, the bulge and the stepped cracking you see on older walls.
A wall built with a compacted base set below frost depth, well-draining stone behind it, filter fabric and weeps can stand for generations. A handsome wall built without them is on a clock from the day it is finished. Around Brookhaven, clay soils hold water and freeze-thaw cycles heave it, so we build every wall as structure first and landscaping second.
Why retaining walls fail
Nearly every failed wall in this area failed for one of three reasons, and all three involve water.
-
Trapped water
Rain soaks the soil behind the wall and adds weight. With no stone, fabric or outlet, that water builds pressure against the wall every wet season until it leans or bulges.
-
Freeze-thaw heave
Saturated soil expands when it freezes and drives the wall outward each winter. The movement does not reverse in spring, so every cold season adds to the last.
-
A weak footing
A wall set on poorly compacted ground, or above frost depth, is lifted and dropped by every Pennsylvania winter. Courses shift, joints open and the wall loses its shape.
Once a wall has rotated or bellied, patching the face leaves the cause in place. We rebuild the affected section, reuse the original stone or block where it is sound, and add the drainage that was missing.
Three ways to face the wall
-
Natural stone
Fieldstone and ashlar suit older Delaware County properties, and can be dry-laid or mortared. The most natural match for the stone already on the house.
-
Segmental block
Engineered for retaining loads, and often the practical choice for taller walls or long runs along a slope.
-
Brick-faced
Reads well against a brick house and is generally better suited to lower walls.
Whichever face you choose, the structure behind it is the same. The material changes how the wall looks, not what it needs to stand.
Stone walls in the field
-
/filters:strip_exif()/filters:no_upscale()/media/4a3c7cb8-a8e6-4884-9d42-54f5b944fbe8.jpeg)
Stone wall beside a bluestone patio
-
/filters:strip_exif()/filters:no_upscale()/media/41e10313-e16e-4ad2-994c-68f032b5a1a6.png)
Low stone wall along a patio edge
-
/filters:strip_exif()/filters:no_upscale()/media/4f06da65-4b85-4754-b69a-2d75e2e355dc.png)

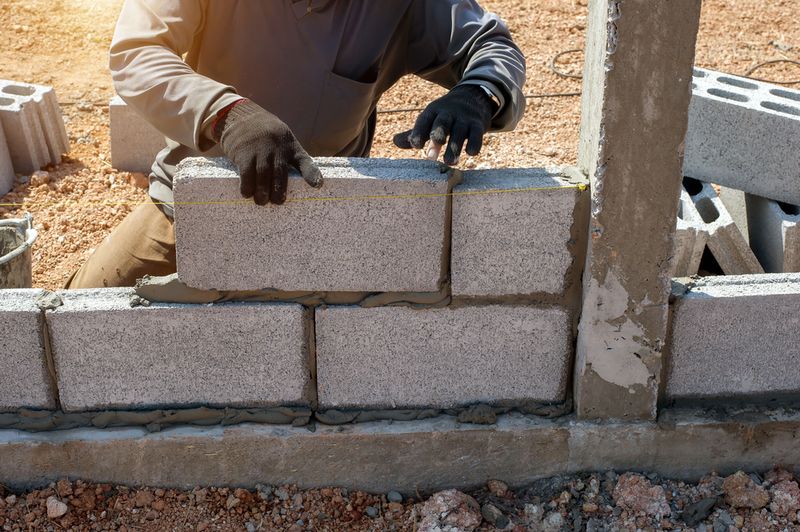

Laying courses by hand
Questions about retaining walls
Why is my retaining wall leaning or bulging?
Almost always water pressure. Soil behind the wall absorbs rain, gets heavier and pushes outward, and with no drainage layer or weep that pressure builds every wet season. Frost makes it worse, because saturated soil expands when it freezes and the movement does not reverse in spring. A leaning wall has lost its geometry, so the fix is rebuilding that section with proper drainage.
Can a leaning retaining wall be repaired without rebuilding it?
Sometimes, if the movement is minor, confined to a small area and the cause has been corrected. Usually not. Once a wall has rotated or bellied, the courses no longer bear on each other as built, and a cosmetic repair leaves the failure in place. We tell you plainly which situation you have, and reuse sound stone or block when we rebuild.
How tall can a retaining wall be built?
Low garden walls are straightforward masonry. Above roughly three to four feet the soil loads rise enough that engineering, reinforcement and often a permit come into play, and the threshold varies by municipality across Delaware County. A tall wall may need geogrid reinforcement or two terraced walls instead of one. Raise height early, because it changes the design, not just the price.
What kind of drainage does a retaining wall need?
Three parts working together: clean crushed stone directly behind the wall so water moves down instead of pressing on the face, filter fabric that keeps soil out of that stone, and an outlet, either weep holes through the wall or a perforated pipe carrying water to daylight. Leave out any one and the system stops working. Stone with no outlet just becomes a reservoir.
What affects the cost of a retaining wall in Brookhaven?
Cost depends on wall height and length, the material on the face, how much excavation and drainage the slope calls for, how easy it is to reach the site, and whether an old wall must be taken down first. Only a look at the property gives a real number, so we assess it before quoting instead of guessing a range.
Tell us what your wall is doing
Leaning, cracking or planning a new wall: send us the details and we will look at the slope before we quote.
Serving Brookhaven, Havertown, Drexel Hill, Springfield, Chester, Wayne, Radnor, Ardmore and Philadelphia, plus Delaware, Montgomery and Chester Counties.
